The Duffing oscillator is a nonlinear dynamic system known for its ability to amplify, stabilize, and regulate voltages. Its unique behavior allows it to function similarly to a DC-DC buck-boost converter, which is often used to manage fluctuating inputs. This makes it an excellent choice for solar power applications where voltage and current outputs from photovoltaic (PV) systems tend to vary based on sunlight conditions.
In this article, we’ll explore how you can build a Duffing oscillator powered by a 150W or 170W solar panel, handle the higher current safely using a series current limiting resistor, and guide you through the step-by-step process to assemble such a project for practical solar energy management.
A 150W or 170W solar panel generates approximately 9-14A of current at 12V, depending on sunlight conditions. While this offers plenty of power for off-grid applications, it also means that the circuitry used to handle this power must be robust enough to manage high currents without overheating or failing. A Duffing oscillator is a perfect candidate to efficiently stabilize and amplify this fluctuating solar input, allowing the energy to be harnessed more effectively.
When dealing with high-power solar panels, such as a 150W or 170W model, the primary challenge is to prevent the circuit from being overloaded by the high current output. While Duffing oscillators are known for their nonlinear regulation capabilities, they still need current management to avoid damaging sensitive components like diodes and resistors.
To prevent excess current from damaging the Duffing oscillator's components, a current limiting resistor is added in series with the solar panel output. This component limits the amount of current flowing into the circuit, protecting diodes, resistors, and the operational amplifier (op-amp) from overloading.
Suggested Resistor Value: A 1Ω, 10W resistor is a good starting point for this application. This will limit the current to more manageable levels without causing excessive voltage drop.
Power Rating: The resistor should have a power rating of at least 10W to handle the current without overheating.
| Feature | Duffing Oscillator | DC-DC Buck-Boost Converter |
|---|---|---|
| Voltage Regulation | Nonlinear, self-regulating | Linear, precise output regulation |
| Efficiency | ~85% | ~90-95% |
| Complexity | Higher due to nonlinear dynamics | Lower, simple feedback control |
| Handling Voltage Fluctuations | Highly adaptable, handles well | Stable, but may need additional control |
| Cost | Moderate to high | Low to moderate |
Ensure your 150W/170W solar panel is clean and positioned in an area with maximum sunlight exposure. Use proper connectors and cables rated for high current.
Place the 1Ω, 10W series current limiting resistor between the positive terminal of the solar panel and the input of your Duffing oscillator circuit. This step is crucial to prevent excessive current from damaging the circuit.

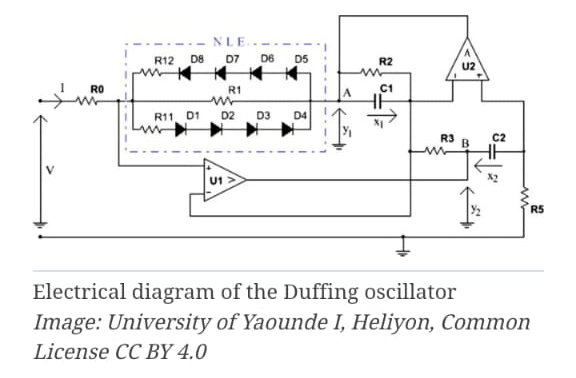

Construct the nonlinear element (NLE) using Schottky diodes (D1-D8) and resistors (R11, R12). Then connect the LM358 op-amp to the nonlinear element as shown in your circuit diagram. The op-amp will amplify the chaotic signal generated by the Duffing oscillator. Place capacitors C1 and C2 in their respective positions to help smooth out and regulate the output.
Connect the circuit to the solar panel, ensuring that the negative rail is grounded. Measure the output voltage at the op-amp’s output (Node X1). The Duffing oscillator should now be stabilizing and amplifying the variable solar input. Use an oscilloscope to observe the nonlinear oscillations and monitor how the circuit handles changes in sunlight intensity.
Attach heat sinks to any components (diodes and resistors) that are likely to dissipate heat during high-current operation. Ensure all connections are secure and components are rated properly to handle long-term exposure to solar power.
The Duffing oscillator is similar to a buck-boost converter in that both can amplify and regulate fluctuating DC inputs. However, the Duffing oscillator offers nonlinear regulation, making it particularly suitable for chaotic or unpredictable inputs like those from solar panels.
The series current limiting resistor prevents excess current from flowing through the Duffing oscillator circuit, protecting sensitive components like diodes and resistors. It ensures that the high output from the solar panel does not overload the system.
Yes, with proper heat management (heat sinks) and the use of high-power components (such as Schottky diodes and high-wattage resistors), the Duffing oscillator can handle a 150W or 170W solar panel effectively.
For further reading on Duffing oscillators and their applications, you can check out this scientific study on Duffing systems in electrical engineering.
